性能特點 Feature

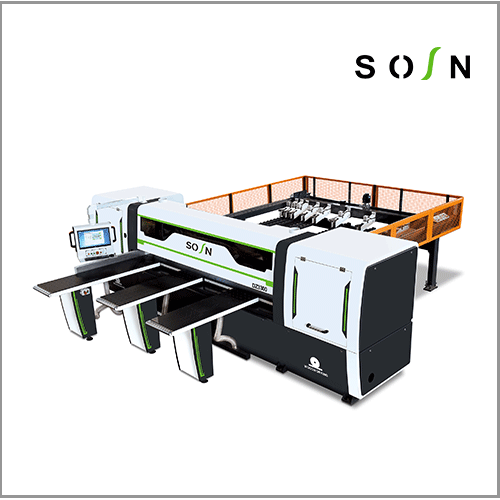

重型電子開料鋸適用于標準化大批量加工類型的家倶廠、電器廠、服裝廠、玩俱廠、五金廠等板材的精密開料，如：人造板、鋁板、有機玻璃、中纖板、密度板、刨花板、ABS 板、PVC 板、實木等。

重型退火機架，精度高，穩定性好，優化鋸切軟件多單混排，提高生產效率，工控電腦操作，同步打印標簽。

工作臺進料采用氣動浮珠臺面，保護板材表面，防止板材刮花。

高質量的齒輪齒條傳動系統，保證了快速加工以運動平穩。

主鋸電機有多楔帶進行傳動，確保了鋸切的精確平穩。

可以根據不同鋸切長度，自動調節鋸切行程，減少空行程時間，提高工作效率。

鋸片裝卸方便快捷鋸與輔鋸獨立升降，采用直線導軌，該系統保障加工精度和結構強度，達到高鋸切質量。

Heavy-duty annealing frame, high precision, good stability,

Optimize sawing software and mixed multiple orders, improve

production efficiency, industrial computer operation, synchronous printing of

labels.

Front tables: air tables that allow easy and effortless movement of the boards.

All tables include rollers at their ends to help loading and allows lateral

movement to fit the cutting type.

Clamps: equipped with 10 pneumatic clamps of high strength and holding

power that allow the movement of boards and board packages.

Side Pusher: Double side pusher allows perfect square alignment of boards

ensuring the cutting accuracy.

The high-quality rack and pinion transmission system ensures fast work and

smooth movement.

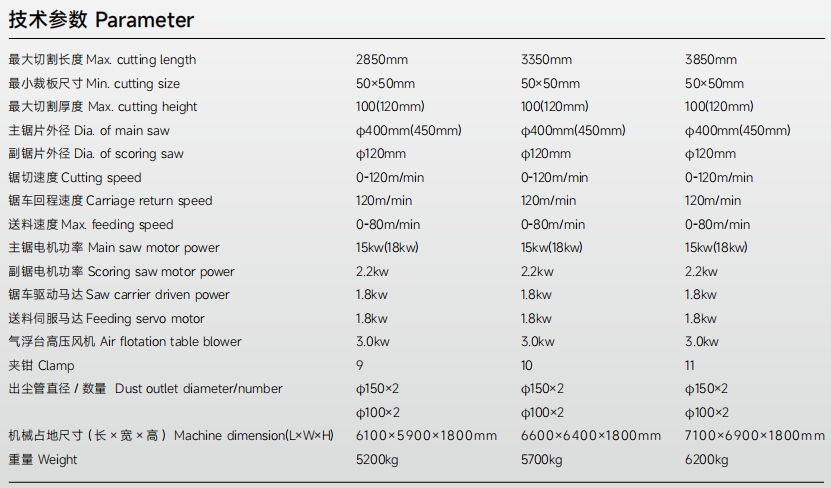

Saw carriage with rack and pinion drive 1.8kw, main saw unit 15kw, separate

motor for scoring unit 2.2kw
